Chi Tiết Sản Phẩm

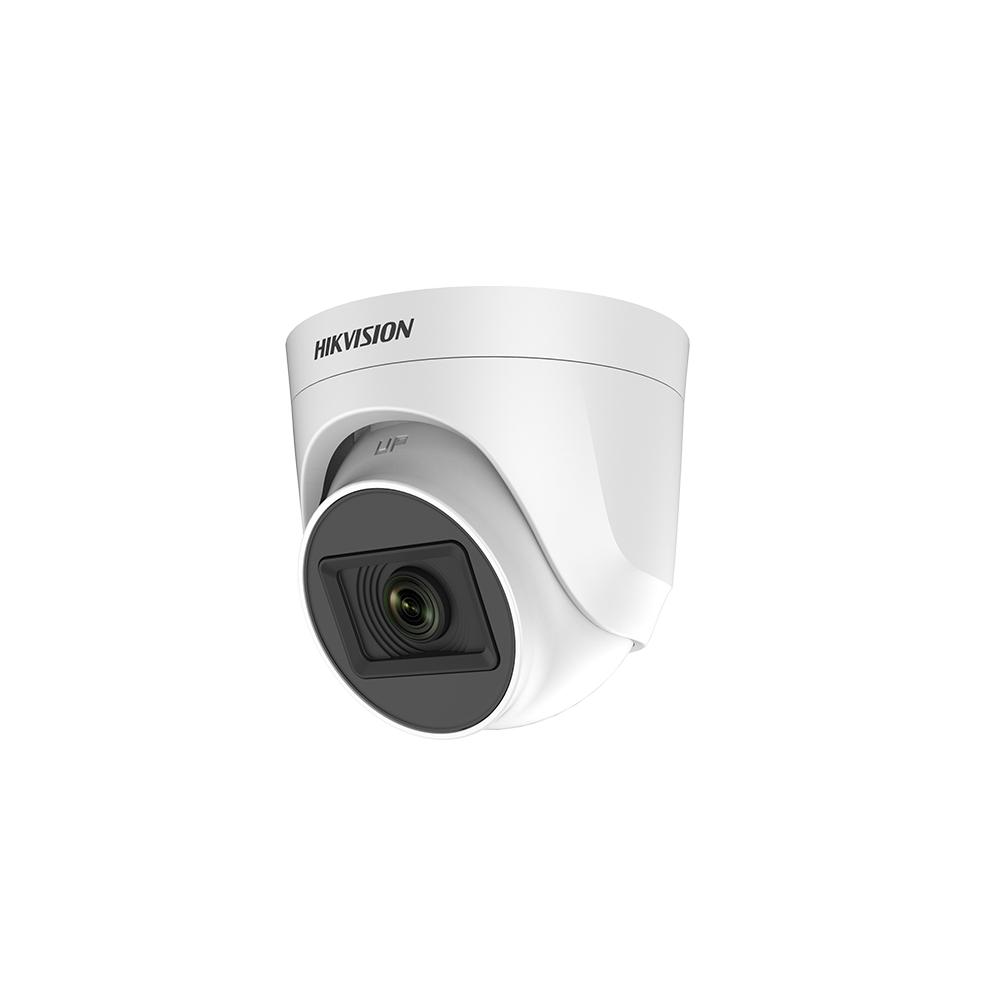

DS-2CE78H0T-IT3FS/NTP

5MP Audio Fixed Turret Camera

5 MP coaxial audio camera
Enhanced safety with discreet and economical built-in microphone
Transmit audio over coaxial cable
EXIR 2.0: advanced infrared technology with 40 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Price: 3.100.000 VND

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor5 MP CMOS
Signal SystemPAL/NTSC
Frame RateTVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC
Resolution2560 (H) × 1944 (V)
Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Lens2.8 mm, 3.6 mm, 6 mm fixed lens
Horizontal Field Of View2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7° 3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9° 6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°
Lens MountM12
Day & NightICR
WDR (Wide Dynamic Range)Digital WDR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°,Rotation 0 to 360°

Menu
Image ModeSTD/HIGH-SAT
AGCSupport
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceATW/MANUAL
LanguageEnglish
FunctionsBrightness, Sharpness, Mirror, Smart IR

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
Power ConsumptionMax. 3.7 W
Protection LevelIP67
MaterialEnclosure: Plastic Main Body: Metal
IR RangeUp to 40 m
CommunicationHIKVISION-C
DimensionsΦ 109.82 mm × 91.03 mm (Φ 4.32" × 3.6")
WeightApprox. 300 g (0.66 lb.)
