Chi Tiết Sản Phẩm

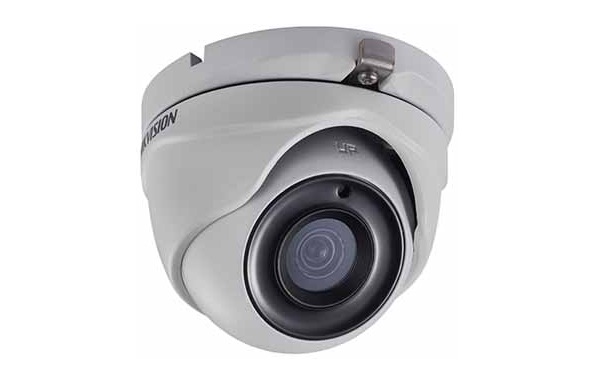

DS-2CE56H0T-ITM

5 MP Fixed Turret Camera

5 MP turret camera
EXIR 2.0: advanced infrared technology with 20 m IR distance
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor5 MP CMOS image sensor
Max. Resolution2560 (H) × 1944 (V)
Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°

Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed Lens
Focal Length & FOV85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm)
Lens MountM12

Image SettingsBrightness, Sharpness, DNR, Mirror, Smart IR
Frame RatePAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps,NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)DWDR
Image EnhancementBLC
White BalanceATW/MWB
AGCSupport

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
MaterialMetal
Dimension91 mm × 82.6 mm × 68.3 mm (3.58" × 3.25" × 2.69")
Approx. 350 g (0.77 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
LanguageEnglish
Power Supply12 VDC ±25%
ConsumptionMax. 4.3 W
IR RangeUp to 20 m
