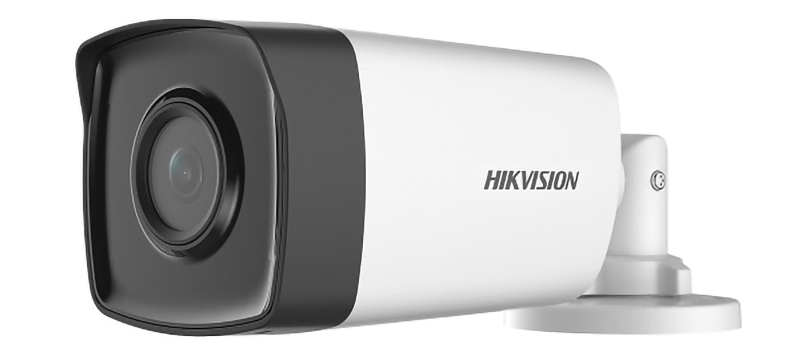

DS-2CE17D0T-IT5 (C)

2 MP Fixed Bullet Camera

High quality imaging with 2 MP, 1920 × 1080 resolution
3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
Up to 80 m IR distance for bright night imaging
Water and dust resistant (IP67)

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
Signal SystemPAL/NTSC

Lens
Lens Type3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
Focal Length & FOV
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°

6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°

8 mm, horizontal FOV: 39.9°, vertical FOV: 21.9°, diagonal FOV: 46.5°

12 mm, horizontal FOV: 24.6°, vertical FOV: 13.9°, diagonal FOV: 28.1°
Lens MountM12

Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Smart IR
Frame RateTVI: 1080P@30fps, 1080P@25fps
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR/BLC/HLC/Global
Noise ReductionYes
White BalanceAuto/Manual
AGCYes

Interface
Video Output1 HD analog output

General
Material
Front Cover: Metal

Main Body: Plastic
Dimension78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53")
Approx. 315 g (0.69 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ± 25%
Consumption
Max. 4.7 W
IR RangeUp to 80 m
