Chi Tiết Sản Phẩm

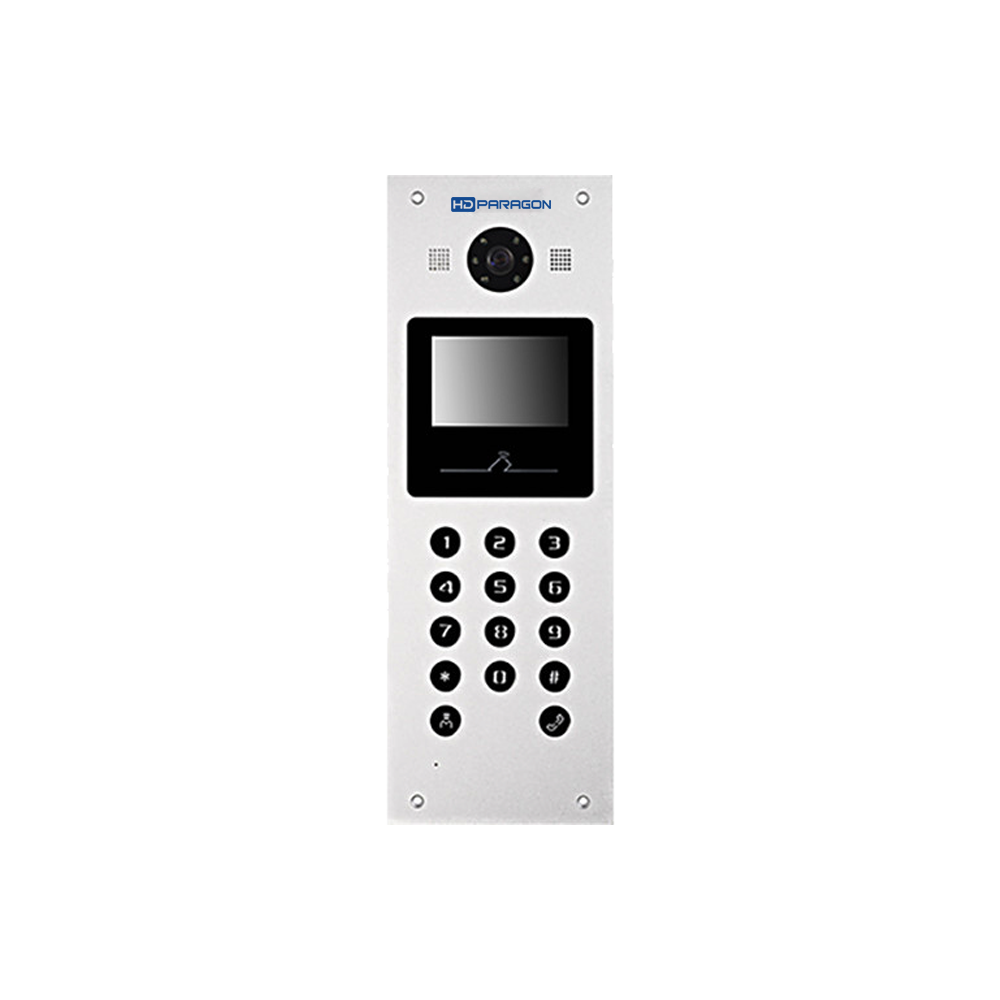

HDS-KD3002-VM/SE

Water Proof Metal Door Station

 Video intercom function
 Access control function
 Issues cards via door station, up to Max. 2500 cards, via outer door station, up to 50000 cards
 Card readers supported
 Self-adaptive visible light supplement
System Parameters
Processor: High-Performance Embedded SOC Processor
Operation System: Embedded Linux Operation System
Display Parameters
Display Screen: 3.5-Inch Colorful TFT LCD
Display Resolution: 480 × 320
Operation Method: Physical Keypad
Operation interface: LCD Display, Easy Menu
Video Parameters
Camera: CMOS Low Illumination 1.3 MP HD Colorful Camera
Video Compression Standard: H.264
Resolution: 1280 x 720
Video frame rate: PAL: 25 fps, NTSC: 30 fps
Audio Parameters
Audio Input: Built-in Omnidirectional Microphone
Audio Output: Built-in Loudspeaker
Audio Compression Standard: G.711 U
Audio Compression Rate: 64 Kbps
Audio Quality: Noise Suppression and Echo Cancellation
Network Parameters
Ethernet: 10/100/1000 Mbps Self-Adaptive Ethernet
Network Protocol: TCP/IP, RTSP
Access Control Parameters
Internal Card Reader: Built-in IC Card Reader
External Card Reader: Wiegand 26, Wiegand 34, or RS-485 IC Reader
Door Magnetic Detection: Detects Door Magnetic Status
Light Supplement
Light Supplement Mode: Visible Light Supplement
Alarm Parameters
Alarm Input: Door Magnetic Alarm, Tampering Alarm
Device Interfaces
Network Interface: 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
RS-485: 1 RS-485 Half-Duplex Port
I/O Input: 4
I/O Output: 2
Wiegand: 1 Wiegand Port for Accessing Wiegand IC Card Reader
USB : 1 USB 2.0, Supporting U-Disk
General
Material: Aluminum Alloy
Power Supply: 12 VDC
Power Consumption: ≤15 W
Certification: FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Working Temperature: -40° C to +60° C (-40° F to 140° F)
Working Humidity: 10% to 90%
IP Protection Level: IP65
Dimensions(L × W × H): 357 mm × 124 mm × 55 mm (14.1" × 4.9" × 2.2")
