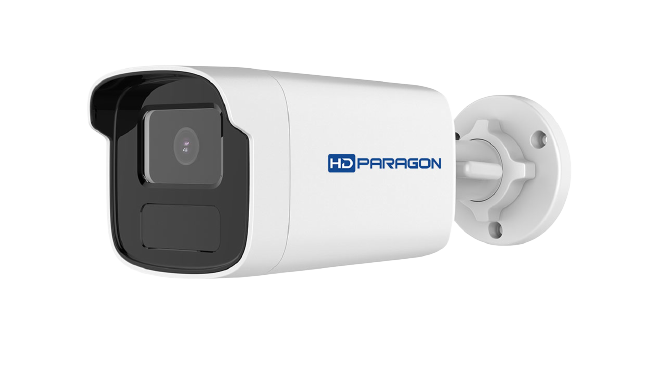

HDS-22VD-IR50
2MP IR Bullet Network Camera
● Max 1920 × 1080 @ 25fps
● 4/6 mm fixed lens
● H.265+, H.265, H.264+, H.264
● 120 dB WDR
● Up to 50 m IR range
● IP67
Camera |
|
Image Sensor |
1/2.7″ Progressive Scan CMOS |
Min. Illumination |
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
Shutter Speed |
1/3 s to 1/100,000 s |
Slow Shutter |
Yes |
Wide Dynamic Range |
120 dB |
Day & Night |
ICR Cut |
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360° |
Lens |
|
Lens Type & FOV |
4 mm, horizontal FOV 75°, vertical FOV 41°, diagonal FOV 88° 6 mm, horizontal FOV 49°, vertical FOV 26°, diagonal FOV 57° |
Aperture |
4 mm F2.0; 6mm F1.6 |
Lens Mount |
M12 |
Illuminator |
|
IR Range |
50 m |
Wavelength |
850 nm |
Smart Supplement Light |
Yes |
Video |
|
Max. Resolution |
1920 × 1080 |
Main Stream |
50Hz: 25fps (1920 × 1080, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 720) |
Sub Stream |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
Video Compression |
Main Stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264 /MJPEG |
Video Bit Rate |
32 Kbps to 8 Mbps |
H.264 Type |
Baseline Profile/Main Profile/High Profile |
H.265 Type |
Main Profile |
Stream Type |
Main stream/Sub-stream |
Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
* Note: The frame rate of the sub-stream cannot exceed the maximum frame rate of the current main stream. |
|
Smart Feature-Set |
|
Simultaneous Live View |
Up to 6 channels |
API |
ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
Smooth Streaming |
Yes |
User/Host |
Up to 32 users. 3 user levels: administrator, operator and user |
Security |
Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 |
Network Storage |
NAS (NFS, SMB/CIFS) |
Client |
GuardingExpert , Guardingvision |
Web Browser |
IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 |
Image |
|
Smart IR |
Yes |
Day/Night Switch |
Day, Night, Auto, Schedule |
Image Enhancement |
BLC, HLC, 3D DNR |
Image Settings |
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
SNR |
≥ 52 dB |
Interface |
|
Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
Intelligent (Traditional Algorithm) |
|
Basic Event |
Motion detection, video tampering alarm |
General |
|
Firmware Version |
V5.5.123_20210625 |
Linkage Method |
Upload to FTP, notify surveillance center, send email, trigger capture |
Web Client Language |
English, Russian, Italian, French, Polish, Spanish, Turkish, Portuguese |
General Function |
Anti-flicker, heartbeat, mirror, password protection, privacy masks, watermark, IP address filter |
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Power Supply |
12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection |
Power Consumption and Current |
12 VDC, 0.4 A, max. 5W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W |
Power Interface |
Φ5.5 mm coaxial power plug |
Material |
Front cover & bracket: metal Back cover & sun shield: plastic |
Camera Dimension |
83.7 mm × 80.7 mm × 205.6 mm (3.3" × 3.2"× 8.1") |
Package Dimension |
260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9") |
Camera Weight |
420 g |
With Package Weight |
668 g |
Approval |
|
Protection |
Ingress protection: IP67 (IEC 60529-2013) |
EMC |
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); IC (ICES-003: Issue 6, 2016) |
Safety |
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950- 1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
